Part Number: NTPC-BCL-100W-XX
XX = Installation Method
XX = Installation Method
APPLICATION:

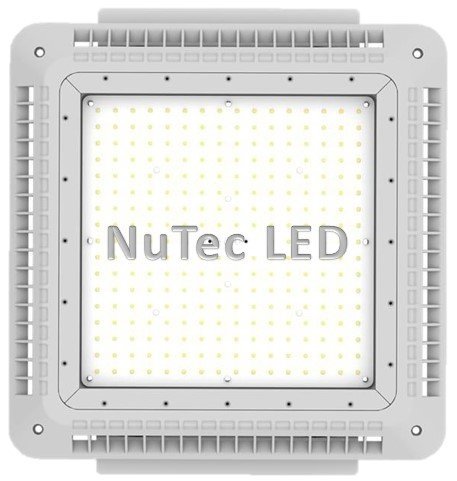

The LED Canopy light provides an energy saving solution to a wide spectrum of applications including
but not limited to security lighting in schools, office, complexes, light commercial development, apartments,
parking garages, entryways, and stairwell. It also can be used in workshop, warehouse, parking lot, toll gate,
gas station, supermarket, exhibition hall, gym, and other places.
but not limited to security lighting in schools, office, complexes, light commercial development, apartments,
parking garages, entryways, and stairwell. It also can be used in workshop, warehouse, parking lot, toll gate,
gas station, supermarket, exhibition hall, gym, and other places.
MOUNTING OPTIONS:
Electrical/Optical Characteristics:
| Description | Specification |
|---|---|
| POWER | 100W |
| INPUT VOLTAGE | 100 – 277Vac, 50/69Hz |
| LUMINOUS FLUX | 15,000 LUMENS |
| CCT | 3000K, 4000K, 5700K |
| LED CHIP | LUMILEDS 3030 |
| LED DRIVER | MEANWELL |
| LIFETIME | 50,000 HOURS |
| CRI | >80 |
| WEIGHT | 8.6Kg |
| BEAM ANGLE | 120° |
| STORAGE TEMP | -40°C TO +80°C |
| OPERATING TEMP | -40°C TO +50°C |
| IP RATING | IP65 |
| CONFORMING | ROHS / CE / UL / ATEX |
