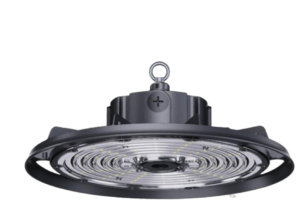

LED Highbay Light 200W
The NTPC-GHBC-200W LED Highbay Light is designed to provide reliable illumination for demanding industrial, commercial, warehouse, and large-area lighting applications.
Product Features
- SMD LED 2835 component with high brightness and long lifespan
- High-efficiency design rated at 180 lm/W
- Cool white 5700K color temperature
- High-efficiency cooling system
- Operating temperature from -10°C to 45°C
- IP65 and IK08 rated
- 180–277Vac, 50/60Hz power supply
- Optional motion sensor available under a different model
Applications
- Warehouses
- Production Lines
- Malls
- Food Industry Facilities
- Sports Grounds
- Other Illumination Areas
Light Distribution
Available light distribution angles: 90° and 120°.
Electrical / Optical Characteristics
| Specification | Details |
|---|---|
| Input Voltage | 180–277Vac (50/60Hz) |
| Power | 200W (±10%) |
| Luminous Flux | 27,000 lumens (±10%) |
| Color Temperature | Cool White: 5700K |
| Life Time | >50,000 Hours |
| CRI | >70 |
| Operating Condition | -10°C to 45°C |
| Storage Condition | -10°C to 55°C |
| Conforming To | RoHS, CE |
| Beam Angle | 90°, 120° |
| Housing | Aluminum Alloy |
| Power Factor | ≥0.90 |
| IP Rating | IP65 |
| Motion Sensor | No – refer to MS model |
| Sensor Adjustment | No |
Product Dimensions
- Dimensions: Ø289 × 165 mm
- Dimension Tolerance: ±1 mm
- Net Weight: 2 kg per unit
- Packaging Quantity: 8 units per box
