FEATURES:
• Excellent focused optics 3.5° for long range illumination up to 3000m
• Low power consumption compared to halogen/HID/MH searchlights, consuming 240W
• Input voltage: AC100-277V for MC Types
• Corrosion resistant Aluminum housing with stainless steel mounting hardwares
• UV-resistant toughened glass lens
• High protection level, up to IP68, suitable for harsh weather conditions
• High impact resistance, meeting IK10
• High vibration resistance, meeting 3G standards
• Low profile, lightweight, anti 17-level wind power
• Long LED Lifespan, more than 50,000 hours, low maintenance, no bulb replacement
• Warranty: 2 years

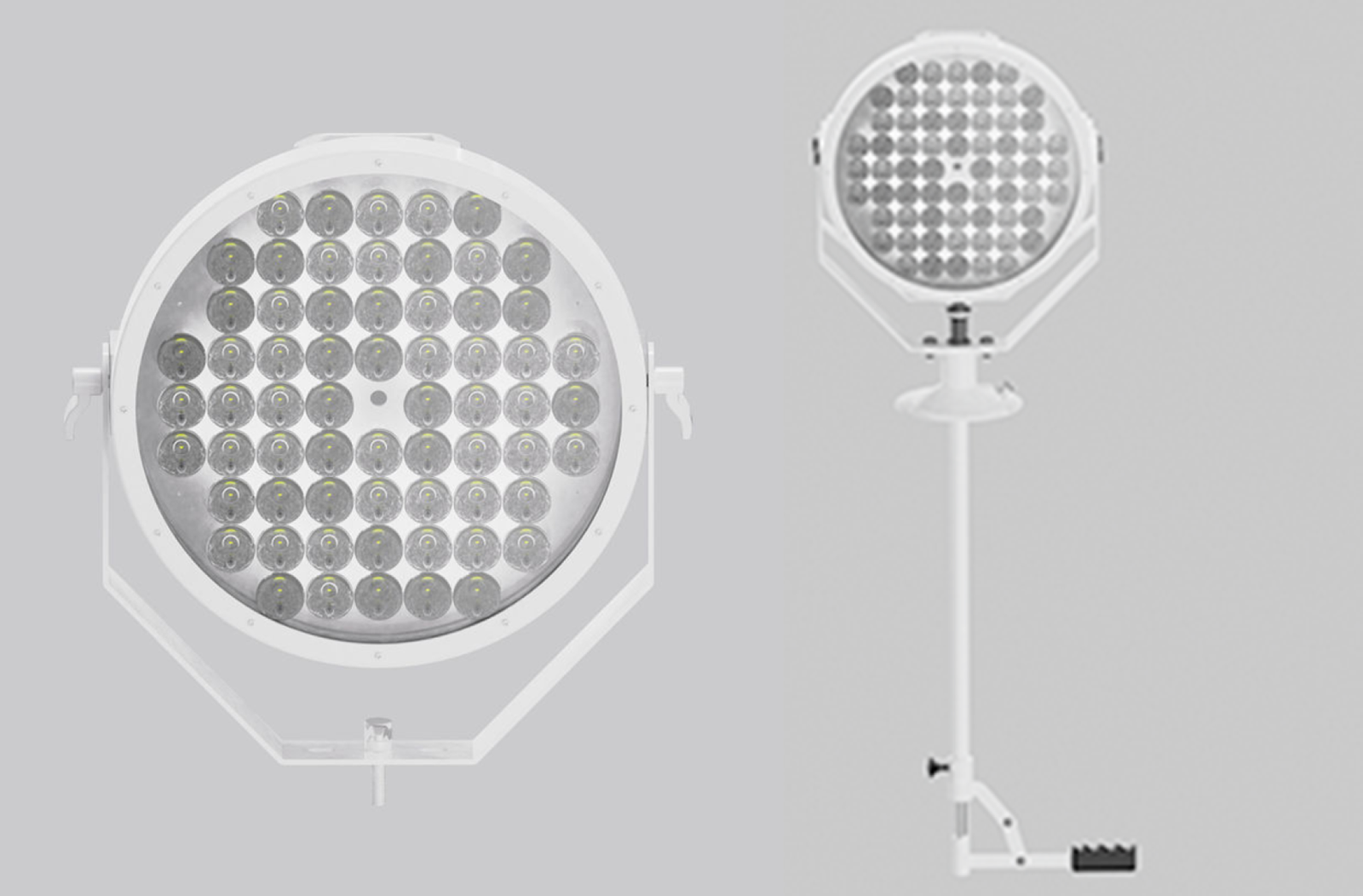

MC Type
Manual operation
– with adjustment column operable within the wheelhouse
| Power | 240 Watts |
| Lumens | 16,080 lm |
| Color Temperature | 6000K |
| Beam Angle | 3.5° |
| Fixture Color | White |
| LED Chip | Cree LED |
| IP Rating | IP68 |
| Operating Temperature | -30°C to 40°C |
| Lifespan | >50,000 Hours |
| Voltage | 100-277Vac |
| Pan/Tilt Range | Pan, 0° to 350° / Tilt, -30° to +30° |
| Warranty | 2 Years – Marine / 3 Years – Non Marine |
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present
Below conditions are not under warranty condition:
• During transportation causing the damage.
• During installation or use, due to human error or misused causing the damage.
• Dismantle the product causing the damage.
• No purchase order document provided.
• Input voltage higher than power supply specification.
• Improper installation.
• Natural disaster such as Earthquake, Typhoon, Lightning and fire causing the product damage.
