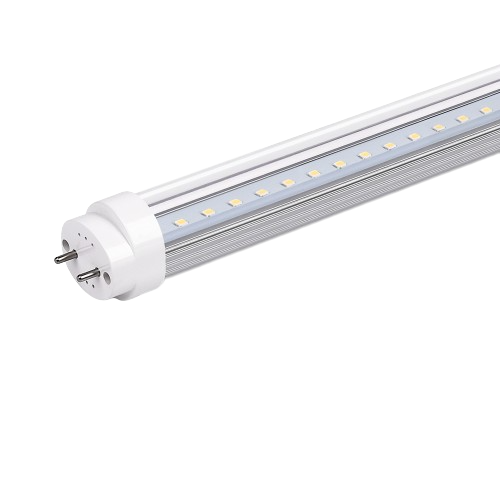

Part Number: NTPC-T8H12-0.6M
Product Description:
- No starter applied. Replace the traditional fluorescent tube directly.
- Quick lighting up, no flicker.
- Aluminum alloy main body helps better heat dissipation.
- No UV and radiation.
- Low power consumption, save more energy and Save more money.
- No pollution, and recyclable. Conforms to ROHS compliant.
- Compatible with T8 lighting fixture.
- High heat dissipation of Aluminum board which have low light decay.
- No Screw.
Electrical/Optical Characteristics:
| Item | Description | Specification |
|---|---|---|
| 1 | Input Voltage | AC100-240V (90 to 277Vac), 50/60Hz |
| 2 | Power | 12W +/-1W |
| 3 | Luminous Flux | Cool White = 2000+/-10% lumen (clear cover) |
| 4 | Color Temperature | Cool White = 5700K to 6500K |
| 5 | Life Time | >25,000 Hours |
| 6 | Color Rendering, CRI | >80 |
| 7 | Operating Condition | 0℃ to + 40℃ , 20-95% |
| 8 | Storage Condition | 0℃ to +40℃, 20-95% |
| 9 | Conforming to | RoHS |
| 10 | Net Weight | 0.25Kg |
| 11 | Cover type | Frosted |
| 12 | Power Factor | ≥0.90 |
| 13 | Power Supply | Non-Insulation, |
| 14 | LED Component | 2835 LED component |
| 15 | Angle | 110° |
