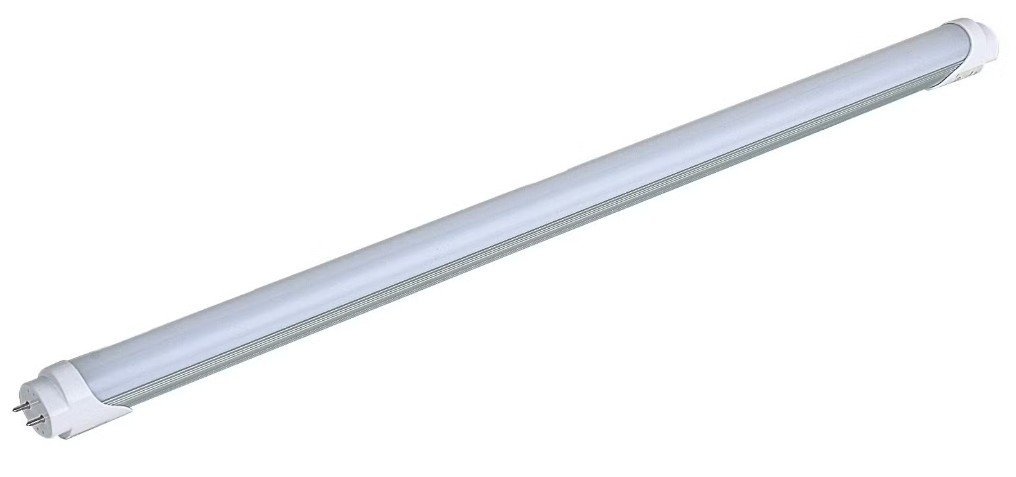

Product Name : Superbright LED T8 Tube
Part Number : NTPC-ST8018W
Product Description:
• Half Aluminum, half PC tube 1.2m length, low wattage high brightness.
• No flickering, No UV and radiation.
• High brightness design.
• Conforms to RoHS, CE.
• Compatible with T8 lighting fixture.
• Super bright design 200lm/w.
Application:
• Factories, Hotel, Show room, Offices, House, Exhibition Hall etc.
Installation Method:
Electrical / Optical Characteristics:
| Item | Description | Specification |
| 1 | Input Voltage | 200 – 277Vac (50/60Hz) |
| 2 | Power | 18W (+/- 1W) |
| 3 | Luminous Flux | 3,600 lumens (+/-10%) |
| 4 | Color Temperature | 3000K / 6500K |
| 5 | Lifetime | >50,000 hours |
| 6 | CRI | >80 |
| 7 | Operating Condition | 0 to 40°C |
| 8 | Conforming to | Rohs, Ce |
| 9 | Net Weight | 0.25 Kg |
| 10 | Housing | 1.2m length, half alum, half PC |
| 11 | Cover Type | Frosted |
| 12 | Power Factor | >/= 0.90 |
| 13 | LED Chip | 2835 LED component |
| 14 | Angle | 110° |
Safety Precaution:
• Before installation, ensure product do not have any damage such as dropping, over press and etc.
• Before installation, please read, understand and follow the work instruction.
• This product must handle by professional personal. Non-professional personals are not allow to dismantle or perform installation work.
• Shall not place on corrosion location, flammable location, high moisture areas. Must handle softly during transportation.
• Shall not install at hot location (such as burning location and others) to avoid damage the product.
• Ensure all connection are correct before switch on the power supply.
• Without permission, individual are not allow to dismantle the product.
• Ensure the power supply been switch off before proceed for any installation or repairing works.
Warranty Condition:
• Product Warranty for 36 months upon ex-factory.
• Our company will maintain the right to either repair, parts replacement or products exchange during the quality warranty period.
Below conditions are not under warranty condition:
• During transportation causing the damage.
• During installation or use, due to human error or misused causing the damage.
• Dismantle the product causing the damage.
• No purchase order document provided.
• Input voltage higher than power supply specification.
• Improper installation.
• Natural disaster such as Earthquake, Typhoon, Lightning and fire causing the product damage.
